Product Overview
Introducing the Latch Action Toggle Clamp with U Bolts 40344 by POWERTEC.
This clamp is an absolute must for any jig assembly, welding or field repair. It is designed and engineered to provide a secure, straight-pulling action for many of your automotive and home-based projects. Whether you're a professional or DIY type of person, their sturdy, non-distorting hold ensures the protection and/or attachment of your valuables, allowing you to focus on getting things done - quickly and with ease.
- INCLUDES: (2) Toggle Latch Clamp complete with Adjustable U Bolt (Type-40344)
- FUNCTION: A versatile and time saving clamp that works perfectly with jigs and fixture assemblies, doors, automotive applications, heavy duty machinery, and a host of woodworking projects, also works with 71416 Toggle Clamp Mounting Plate & POWERTEC T Track for woodworking projects (Note: for t-tracks that accept 1/4” hex head bolts and 5/16" t-bolts)
- PREMIUM DESIGN: Features a red anti-slip vinyl hand grip and is constructed out of cold rolled steel - wisely coated with high quality zinc plating for anti-rust, corrosion free and long lasting durability
- HEAVY DUTY: Toggle latch locking design allows you to instantly lock and release your work piece while ensuring that you can accurately adjust the mounting distance and clamping force
- HOLDING CAPACITY: 899 kg /1980lbs
- SPECS: Clamp base: 2-1/16"" x 1-7/8"" | Mounting holes: 5/16 spaced 5/8x 13/16 apart | Latch pate: 7/16 x 13/16 | Mounting holes: 5/16"" spaced 3/8. 1/8| U bolt: 1-1/8| Clamp adjusts from 2 (distance from latch plate to clamp base) to 3-3/8 | Clamp height when clamped: 3-1/2"" | Total length range, including handle, when clamped: 5-7/16"
Premium Design
Featuring both strength and adjustability, its high grade steel latch, adjustable U-Bolt fitting and vinyl colored grip handle allows for an easy, comfortable and safe operation. Its already superb construction is enhanced with a zinc plated coating for corrosion resistance and optimized durability.
Common Applications
- Doors
- Machinery
- Automotive Applications
- Broken Handles
- Workbench Joining
- Outdoor Activities
- Fishing
- Rock Climbing

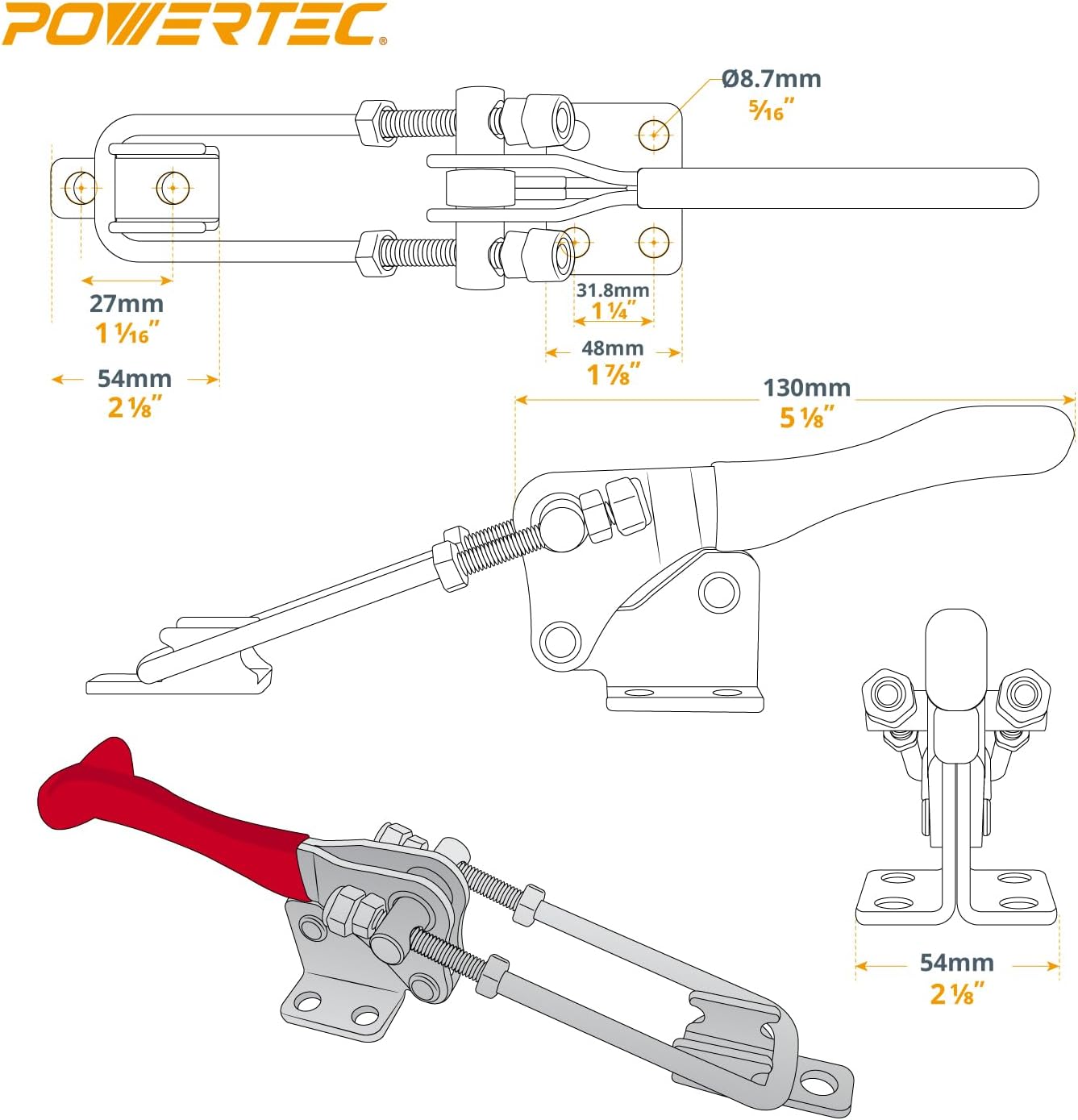

Clamp Specifications
Clamp base: 2-1/16" x 1-7/8"
Mounting holes: 5/16 spaced 5/8 x 13/16 apart
Latch pate: 7/16" x 13/16"
Mounting holes: 5/16" spaced 3/8. 1/8
U bolt: 1-1/8"
Clamp adjusts from 2" (distance from latch plate to clamp base) to 3-3/8"
Clamp height when clamped: 3-1/2"
Total length range, including handle, when clamped: 5-7/16"
Holding Capacity: 1980lbs
