Product Overview

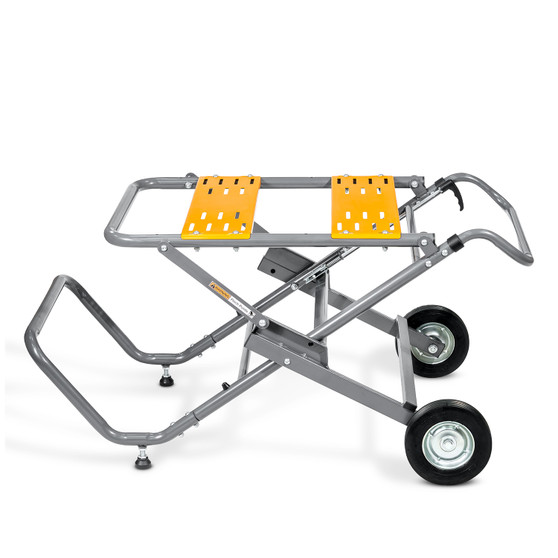

The POWERTEC MT4009 rolling foldable Table saw stand delivers both rugged work-platform stability for optimal bench top operations, and effortless work-stand mobility/storage for project versatility and convenience. Solid steel plates and steel tubular body offer maximum reliability and top performance. Heavy, large machines, such as table saws can be mounted onto the steel plates or directly on the stand itself, and hardware for each attachment style is included. Its 22-5/8" Bed Height is ideal for use with table and tile saws, and other similar machines.
- INCLUDES: (1) Foldable Table Saw Stand (Rolling Edition)
- UNIVERSAL: Table saw stand is designed to accommodate a wide assortment of different sized table saws from popular and common brands
- FEATURES: Portable design with a pair of high-traction 8" wheels for mobility, an automatic locking pin release lever for quick and easy folding action/ storage, plus two adjustable solid steel plates with spaced slots for versatile mounting options
- PORTABILITY: Compact layout designed for fast setup and hassle-free breakdown – and can be stored with or without saw attached (vertically or horizontally)
- WEIGHT CAPACITY: Built with a heavy duty steel tubular frame that seamlessly supports an impressive 330 lbs of downward force
Specifications
- Bench-top steel plates: 21-3/4” x 6-5/16” each
- Max. Mounting Space: 20-5/8" x 18-1/2"
- Min. Mounting Space: 6-29/64" x 18-1/2"
- Stand Height: 22-5/8"
- The height is 43-3/8" when the stand is folded in vertical position.
- Maximum Weight Capacity: 330 lbs
- Net Weight: 35.3 lbs
Storage
Stand automatically locks securely in upright position, and its handy pin-release lever assists in folding for easy, efficient storage. Can be stored with mounted saw attached in either the vertical position (secured with sturdy wide foot measuring 12" x 21" x 1/2") or in the horizontal position. Adjustable, firmly gripping rubber-stop feet (with locknuts) further enhances crucial stand integrity. A comfortable, wide handle and 8-Inch rubber wheels make for smooth, ergonomic portability. Streamline workshop productivity with this heavy-duty, high-utility stand.
To Mount A Table Saw
There are 2 sets of mounting hardware, a 1-3/4" set for mounting to the table top and a 2-1/2" set for mounting a larger saw directly to the frame using the holes in the frame.
1. Place the saw to be used on the table top.
2. Move the saw around until the hole pattern matches the slot combination on the table top, secure with the mounting hardware (1-3/4" set) supplied.
3. Insert the bolt through the bottom of the table and secure with flat washer, lock washer and nut.
PLEASE NOTE: When mounting a larger saw directly to the frame using the mounting hardware (2-1/2" set) supplied, ALWAYS insert the bolt through the bottom of the table and secure with flat washer, lock washer and nut.
Product Manual: view PDF file
